机电框架附件 | Instron

产品 » 测试附件 » 机架附件 » 机电框架附件

通过我们的机电载荷框架附件、附件和升级系列，增强您的万能材料试验系统的性能、多功能性和安全性。这些系统增强功能扩展了您的 Instron 6800 和 3400 系列载荷框架（以及包括 3300 和 5900 系列在内的部分停产型号）的安全性和测试能力，支持更广泛的测试应用。

碎屑防护罩

碎片防护罩在测试空间和操作员之间提供保护屏障。对于在测试下容易发生突然或高能失效的材料（如复合材料、钢筋和电缆），这些防护罩可能是必要的。

碎屑防护罩

A heavy duty support table capable of supporting Instron table model testing systems.

A heavy duty support table capable of supporting Instron table model testing systems.

An Instron 68TM Universal Testing System shown on the heavy duty support table.

重型支撑台

目录编号 2910-056

重型载荷框架支撑台为双柱机电台式载荷框架提供稳定、水平的工作表面。它能均匀分布框架重量，提高操作员安全性，并为用户创造更符合人体工程学的工作高度。

Test machine operator inserts plastic specimen into Instron pneumatic side action tensile grips mounted on 68TM universal testing system with Bluehill Universal software and Advanced Video Extensometer.

Test machine operator inserts plastic specimen into Instron pneumatic side action tensile grips mounted on 68TM universal testing system with Bluehill Universal software and Advanced Video Extensometer.

Operator activates footswitch to actuate pneumatic powered tensile grips.

Back of system view of 68SC universal testing system showing air kit connection point for pneumatic powered accessories.

气动夹具用气动控制装置

气动空气套件、脚踏开关和分配套件可用于支持轻松的夹具闭合和流线型的试样装载过程，通过气动夹具（包括气动侧动拉伸夹具、气动帘线和纱线拉伸夹具、气动剥离夹具等）提高操作员的生产率。

Instron 68TM universal testing machine with a compact hydraulic grip pump sitting on the tabletop supplying power to advanced hydraulic wedge grips.

Instron 68TM universal testing machine with a compact hydraulic grip pump sitting on the tabletop supplying power to advanced hydraulic wedge grips.

Instron floor-standing hydraulic grip pump for supplying power to hydraulic wedge and side action tensile grips.

Instron 6800 Series Floor Model Universal Testing System configured with advanced hydraulic wedge grips powered by floor standing hydraulic grip pump - also configured with Advanced Video Extensometer installed on the outside of an environmental chamber for non-ambient testing.

液压夹具泵

液压夹具泵为 Instron 液压夹具提供精确、可靠的夹紧力，并配有前置模拟仪表以便于监控。您可以选择用于楔形夹具应用的紧凑型泵，或兼容楔形和侧动夹具的落地式型号。

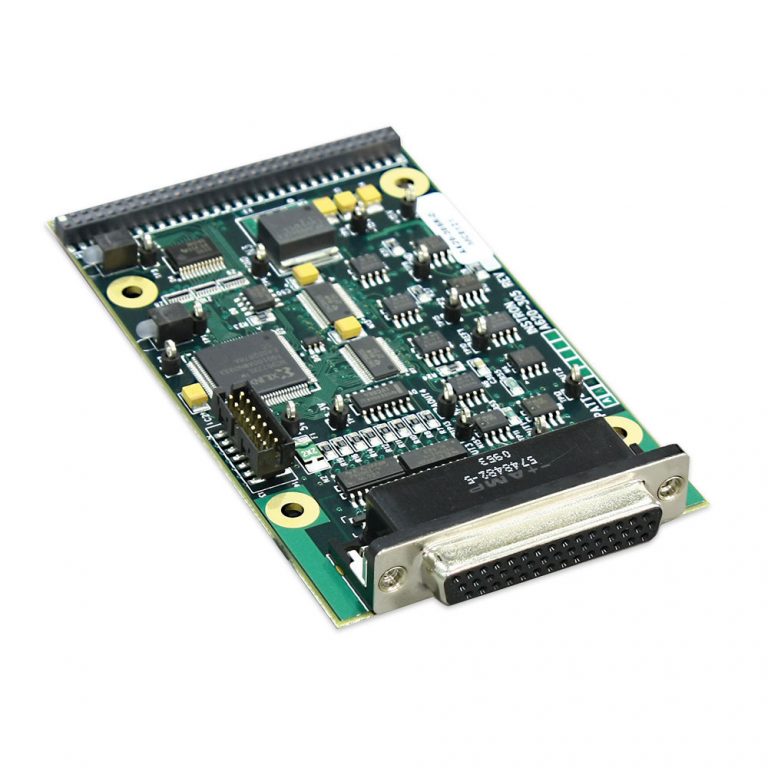

Close up view of a digital I/O board that can be used with Instron universal testing systems.

Close up view of a digital I/O board that can be used with Instron universal testing systems.

Instron's Expansion Channel Module that allows for up to eight channels of signal conditioning and control.

数字控制器配件

Instron 万能材料试验系统支持广泛的传感器信号调理模块以及模拟输出和数字输入/输出板，从而实现与外部设备和测量仪器的无缝对接。

控制器附件

咨询 Instron 专家

没有找到您正在寻找的附件？Instron 已经生产了数千种定制附件，其中许多从未发布在我们的网站上。请告诉我们您的应用需求，我们将帮助您找到合适的解决方案。
