What testing standards does the 2810-005 support?

The Instron Coefficient of Friction Fixture is designed to test in accordance with ASTM D1894 and ISO 8295, the two most widely used standards for measuring static and kinetic coefficient of friction in plastic film and sheeting.

Will this fixture work with the testing system I already have?

The fixture mounts using Instron's standard Type D base grip adapter and connects to the load cell via a Type C coupling, so it's adaptable to most standard universal testing instruments — not just Instron systems with matching fittings. Check with our applications team to confirm compatibility with your specific frame.

Can I test both sides of my material in one setup?

Yes. The test specimen can be mounted to the sled, the table, or both, depending on what your standard or material requires — giving you flexibility to test film-on-film, film-on-metal, or other combinations.

Is this fixture suitable for high-speed friction testing?

No — the 2810-005 is designed for tensile-mode (standard-speed) testing only and is not intended for high-rate or high-speed friction applications. If your application requires higher-speed testing, let us know and we can help identify the right alternative.

What is coefficient of friction testing and why does it matter for plastic film?

Coefficient of friction (COF) testing measures how easily one surface slides against another — in this case, how easily plastic film or sheeting slides against itself or another material. It matters because friction affects how film behaves in real-world use: too much friction can cause jamming or tearing during high-speed packaging and manufacturing processes, while too little can cause slipping, poor stacking stability, or product mishandling. Manufacturers test COF to ensure film performs consistently on packaging lines, in shipping, and in end-use applications.

What's the difference between static and kinetic coefficient of friction?

Static coefficient of friction measures the force needed to start moving one surface against another from a resting position — essentially, how much resistance there is to overcome before sliding begins. Kinetic (or dynamic) coefficient of friction measures the force needed to keep the surfaces moving once sliding has already started. Static friction is typically higher than kinetic friction, and both values matter for different reasons: static friction relates to how film behaves when stationary (like on a stack or roll), while kinetic friction relates to how it behaves once in motion (like running through packaging equipment).

What equipment do you need to test coefficient of friction on plastic film?

At minimum, you need: a universal testing system (or equivalent frame) capable of controlled, constant-speed horizontal pulling; a coefficient of friction fixture, which includes a weighted sled and a flat test table or plate; a load cell sensitive enough to accurately capture low-force readings; and a tow line connecting the sled to the load cell. You'll also need testing software to run the test and calculate results — Instron's Bluehill® Universal software includes a pre-built ASTM D1894 test method, so you can start testing right out of the box or customize it to match your specific procedure.

产品 » 测试附件 » 剥离、摩擦和穿刺试验工装 » 摩擦系数工装

摩擦系数工装

目录编号 2810-005

规格

数据表（在新标签页中打开）

常见问题

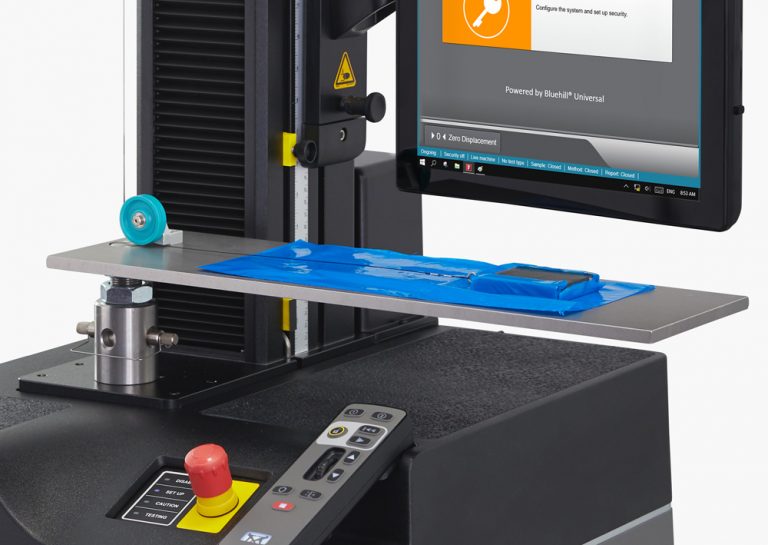

Close-up of an Instron 68SC universal testing machine with ASTM D1894 / ISO 8295 coefficient of friction fixture with a weighted sled on a blue film specimen laid across the horizontal test platform, with Bluehill Universal software visible on the operator dashboard.

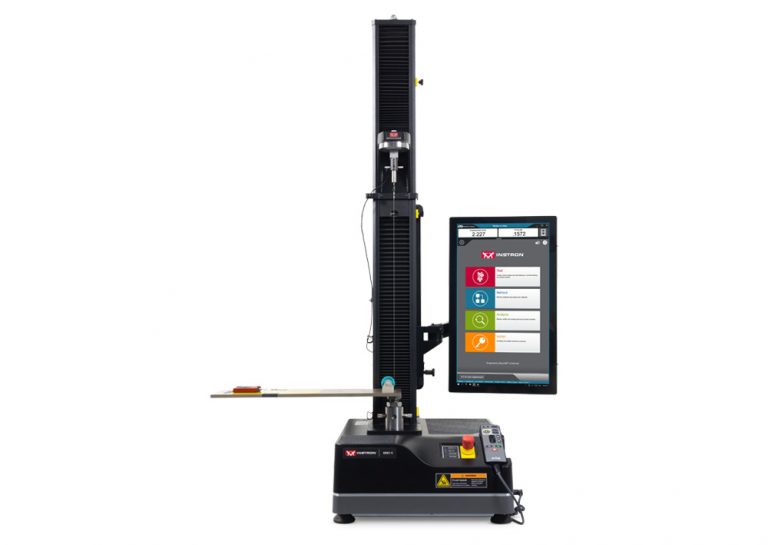

Instron 68SC-5 single column universal testing system configured with a ASTM D1894 / ISO 8295 coefficient of friction fixture and horizontal test platform, with the Bluehill Universal software displaying the test navigation interface.

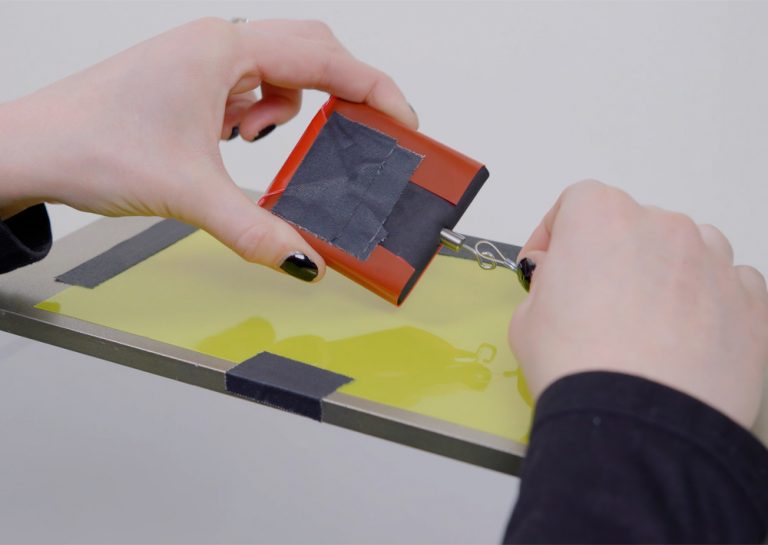

Close-up of a lab operator's hands connecting a tow line hook to a weighted sled wrapped with a film specimen on a yellow film specimen taped to the horizontal test platform of an Instron coefficient of friction fixture

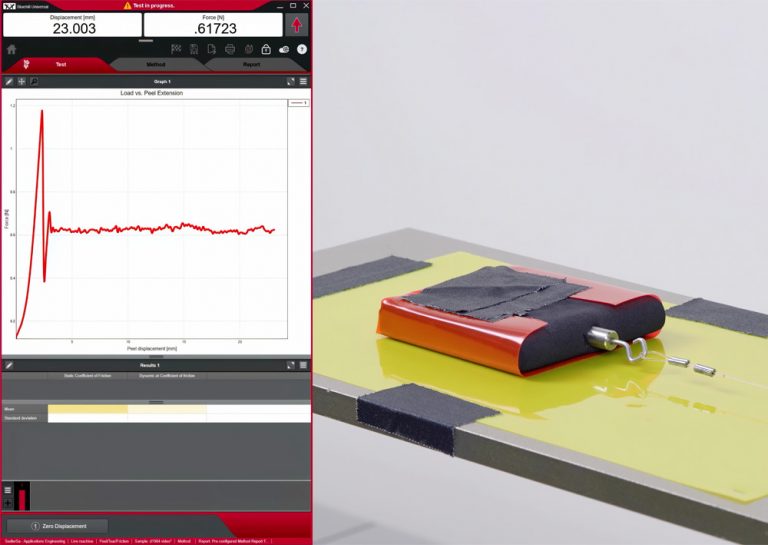

Two-panel image showing Bluehill Universal software displaying a real-time load vs. peel extension graph with coefficient of friction results on the left, and a film-wrapped weighted sled on a yellow film specimen on the coefficient of friction test platform on the right

概述

Instron^® 2810-005 摩擦系数夹具可根据 ASTM D1894 和 ISO 8295 标准测量塑料薄膜和薄片的静摩擦系数和动摩擦系数。加重滑块在固定的水平工作台上被拉动，同时载荷传感器记录所需的力 — 为您的质量和研发团队提供准确、可重复且值得信赖的摩擦数据。

该夹具使用 Instron 标准的 D 型底座夹具适配器直接安装到您的万能材料试验系统中，因此您可以在现有机架上添加摩擦系数测试，而无需购买专用设备。

优势

灵活测试 — 可将试样安装在滑块、工作台或两者上，以便根据您的具体材料和测试要求调整夹具设置。
立即开始测试 — 随附尼龙和金属牵引线，无需采购额外零件即可准备测试。
利用现有设备 — 适用于大多数标准万能材料试验仪器，保护您在测试设备上的现有投资。

应用

用于质量控制、进料检验和研发的塑料薄膜和薄片摩擦测试
拉伸模式摩擦系数测试（不适用于高速应用）

工作原理

牵引线通过导向滑轮将滑块连接到小量程载荷传感器。随着横梁移动，滑块在工作台上被拉动，载荷传感器在整个测试过程中记录力值：

静摩擦系数根据载荷曲线上的第一个力峰值计算得出
动摩擦系数根据两个定义点之间的平均力计算得出
摩擦系数 = 记录的力 ÷ 滑块质量

规格

规格	详情
标准	ASTM D1894, ISO 8295
工作台描述	矩形金属工作台，具有特定的表面光洁度
工作台宽度	152.4 mm (6.0 in)
工作台长度	514.3 mm (20.25 in)
工作台有效长度	109.5 mm (4.3 in)
滑块描述	包裹 1/8 in (3.2 mm) 厚泡沫垫的金属滑块
滑块宽度	63.5 mm (2.5 in)
滑块长度	63.5 mm (2.5 in)
滑块重量	200 g (7 oz)
随附牵引线	尼龙和金属
载荷传感器连接上接头	包括：Cm 型（1/4 in 卸扣销）、Bm 型（3/16 in 卸扣销）、Om 型（6 mm 卸扣销）
机架安装下接头	Instron 1/2 in 卸扣销（Dm 型）

常见问题 (FAQ)

2810-005 支持哪些测试标准？

Instron 摩擦系数夹具旨在根据 ASTM D1894 和 ISO 8295 标准进行测试，这是测量塑料薄膜和薄片静摩擦系数和动摩擦系数最广泛使用的两个标准。

该夹具是否适用于我现有的测试系统？

我可以在一次设置中测试材料的两面吗？

该夹具是否适用于高速摩擦测试？

什么是摩擦系数测试，为什么它对塑料薄膜很重要？

摩擦系数 (COF) 测试测量一个表面在另一个表面上滑动的难易程度 — 在本例中，即塑料薄膜或薄片在自身或另一种材料上滑动的难易程度。这很重要，因为摩擦力会影响薄膜在实际使用中的表现：摩擦力过大会导致高速包装和制造过程中的堵塞或撕裂，而摩擦力过小则会导致打滑、堆叠稳定性差或产品处理不当。制造商测试 COF 以确保薄膜在包装线、运输和最终应用中表现一致。

静摩擦系数和动摩擦系数有什么区别？

静摩擦系数测量使一个表面相对于另一个表面从静止位置开始移动所需的力 — 本质上是开始滑动前需要克服的阻力。动（或动态）摩擦系数测量在滑动开始后保持表面移动所需的力。静摩擦力通常高于动摩擦力，这两个数值都很重要，原因各异：静摩擦力与薄膜在静止时的表现有关（如在堆叠或卷轴上），而动摩擦力与薄膜在运动时的表现有关（如通过包装设备）。

测试塑料薄膜的摩擦系数需要哪些设备？

您至少需要：一台能够进行受控、恒速水平拉动的万能材料试验系统（或同等机架）；一套摩擦系数夹具，包括一个加重滑块和一个扁平测试台或平板；一个灵敏度足以准确捕捉小力值读数的载荷传感器；以及一根连接滑块和载荷传感器的牵引线。您还需要测试软件来运行测试并计算结果 — Instron 的 Bluehill® Universal 软件包含预置的 ASTM D1894 测试方法，因此您可以直接开始测试，或根据您的特定程序进行自定义。

咨询 Instron 专家。

不确定该夹具是否符合您的测试要求？我们的应用工程师可以帮助您根据测试标准和薄膜或薄片类型匹配合适的夹具。
