What warranty comes with the 6800 Series table model systems?

Every new 68TM system comes standard with a one-year Factory Warranty covering everything on the order associated with the frame, plus our 10-Year Mechanical Systems Warranty — the first of its kind in the materials testing industry — covering key components including the crosshead, columns, guide posts, ball screws, base beam, layshaft assembly, and pulleys and belts. Extended warranty coverage is also available, purchased either at the time of sale or prior to the expiration of the Factory Warranty.

Every new 68TM system comes standard with a one-year Factory Warranty covering everything on the order associated with the frame, plus our 10-Year Mechanical Systems Warranty — the first of its kind in the materials testing industry — covering key components including the crosshead, columns, guide posts, ball screws, base beam, layshaft assembly, and pulleys and belts. Extended warranty coverage is also available, purchased either at the time of sale or prior to the expiration of the Factory Warranty.

The 68TM table model line tests up to 100 kN, the highest force capacity Instron has offered in a tabletop frame. Lower-capacity models — 5, 10, 30, and 50 kN — are also available, so you can match the frame to your application.

Can the 68TM table model meet ISO 6892-1 and ASTM E8/E8M requirements?

Yes. Automatic gain adjustment on the 68TM table model ensures stable, closed-loop strain control, allowing it to easily meet ISO 6892-1 Method A1 and ASTM E8/E8M Method B requirements for metals tensile testing.

Can these systems support Nadcap-aligned testing programs?

Yes. The 6800 Series dual column table models offer alignment performance capable of meeting Nadcap requirements, along with fixture compatibility to support a range of composite test methods.

What software runs the 68TM table model?

Bluehill® Universal software runs the 68TM table model, controlling the test, capturing data, and generating results and reports.

What accessories are compatible with the 68TM table model?

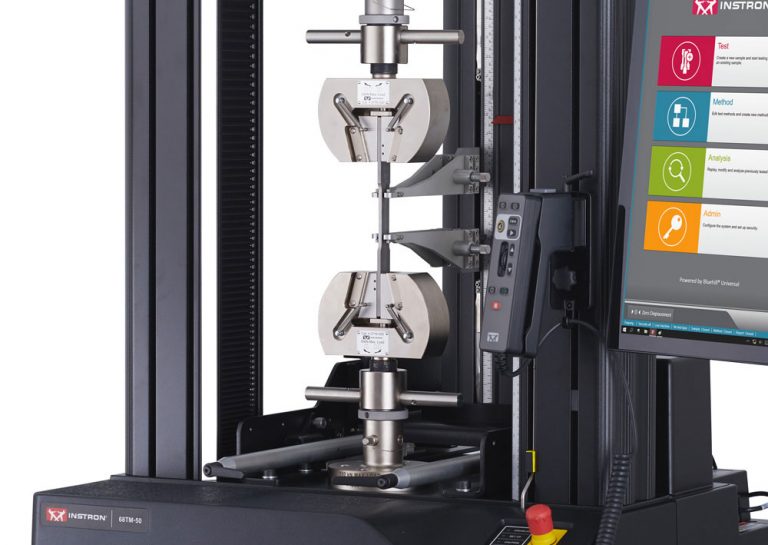

The 68TM table model is compatible with a wide range of grips, fixtures, and accessories — including tensile grips, extensometers, environmental chambers, and the AlignPro alignment kit. The 100 kN model is compatible with nearly every Instron accessory rated up to 100 kN. View Test Accessories

What's the difference between a single column and dual column table model?

Compared to a single-column tabletop model, a dual-column tabletop system handles a broader range of force capacities and accommodates larger grips, fixtures, and more extensometry options. The right choice typically depends on three things: the capacity you need today, the space available in your lab, and how much flexibility you want as your testing program grows.

产品 » 测试系统 » 万能材料试验系统 » 6800 系列万能材料试验系统 » 68TM 台式万能材料试验系统

68TM 台式万能材料试验系统

6800 系列双柱台式系统 (68TM) 拥有 10 年机械系统保修，将实验室所需的精度和多功能性相结合，容量现已扩展至 100 kN。

快速链接

Three-point flexure fixture with a metal test specimen positioned on an Instron 68TM-100 table model universal testing system, with the Bluehill Universal software operator dashboard in view.

Instron 68TM table model integrated into an AT3 automated testing system with a specimen rack and automated loading actuator, enclosed for unattended automated testing.

Instron 68TM-30 table model universal testing system configured with five parallel test stations and pneumatic grips for high-throughput testing.

概述

精准性能。卓越多功能性。

6800 系列双柱台式系统专为应用多功能性而设计 —— 适用于塑料、弹性体、粘合剂、纺织品、电子产品和医疗器械，更高容量的机型可扩展至金属和复合材料。这些机架与各种夹具、固定装置和附件（包括环境箱和全系列引伸计）兼容，为您的测试项目提供增长空间。

力容量高达 100 kN
提供加高和加宽配置
由 Bluehill^® Universal 软件驱动，实现精确、高效的测试
拥有全球服务网络支持，每年为超过 30,000 台 Instron^® 系统提供服务

新品 —— 100 kN 台式机型

紧凑。强大。随时提供卓越性能。

100 kN 台式机型提供了我们有史以来在台式机架中提供的最高力容量 —— 专为高强度合金和复合材料测试而打造，是我们提供的功能最全的万能材料试验系统之一。

标准与测试类型

按照您行业要求的标准进行测试

行业

一套系统。无限测试可能。

Operator loading a green plastic dogbone specimen into pneumatic side action tensile grips on a 6800 Series 68TM table model, with an AVE3 non-contact video extensometer positioned for strain measurement. | Instron

塑料

配置专为高通量塑料测试而设计的引伸计和自动化选项，并在您的项目需要非环境条件时添加环境箱。

Technician loading a metal specimen into hydraulic wedge grips with an AVE3 non-contact video extensometer on a 6800 Series 68TM-100 table model, running Bluehill software. | Instron

金属

对金属进行高力拉伸、弯曲和压缩测试，具有自动增益调节功能，可实现稳定的闭环应变控制。新型 100 kN 台式机型非常适合高强度合金测试。

Technician positioning a battery pouch cell component between compression platens on a 6800 Series 68TM table model for mechanical compression testing. | Instron

电子产品

添加信号调理模块，将机械测试数据与连续性、温度、电阻和其他电学测量同步 —— 从而更全面地了解电子设备在负载下的性能。

规格

比较机型

不确定哪种配置适合您的实验室？使用我们的交互式机架配置器，在规划布局时可视化高度和宽度选项。

启动机架配置器

	68TM-5	68TM-10	68TM-30	68TM-50	68TM-100
载荷容量	5 kN	10 千牛	30 kN	50 kN	100 kN
横梁行程	1163 mm (E1) 1648 mm (E2)	1163 mm (E1) 1648 mm (E2)	1119 mm (E1 F1) 1605 mm (E2 F1) 1066 mm (E1 F2) 1522 mm (E2 F2)	1119 mm (E1) 1605 mm (E2)	1097 mm (E1) 1582 mm (E2)
垂直测试空间	1234 mm (E1) 1739 mm (E2)	1234 mm (E1) 1739 mm (E2)	1190 mm (E1 F1) 1695 mm (E2 F1) 1137 mm (E1 F2) 1642 mm (E2 F2)	1190 mm (E1) 1695 mm (E2)	1168 mm (E1) 1672 mm (E2)
水平测试空间	420 mm	420 mm	420 mm (F1) 947 mm (F2)	420 mm	420 mm
最大速度	3048 mm/min	2032 mm/min	1016 mm/min	762 mm/min	508 mm/min
最小速度	0.001 mm/min
最大返回速度	3500 mm/min	2100 mm/min	1100 mm/min	800 mm/min	508 mm/min
位移控制分辨率	9.9 nm	4.9 nm	2.6 nm (F1) 2.8 nm (F2)	1.8 nm	2.69 nm
机架轴向刚度	45 kN/mm	50 kN/mm	140 kN/mm (F1) 88 kN/mm (F2)	180 kN/mm	180 kN/mm
全速下的最大力	2.5 kN	5 kN	15 kN	25 kN	50 kN
满载下的最大速度	1524 mm/min	1016 mm/min	508 mm/min	381 mm/min	254 mm/min
占地尺寸 (mm) (高 × 宽 × 深) *	1640 x 760 x 715 (E1) 2170 x 760 x 715 (E2)	1640 x 760 x 715 (E1) 2170 x 760 x 715 (E2)	1640 x 760 x 715 (E1 F1) 2170 x 760 x 715 (E2 F1) 1605 x 1280 x 715 (E1 F2) 2135 x 1280 x 715 (E2 F2)	1640 x 760 x 715 (E1) 2170 x 760 x 715 (E2)	1640 x 760 x 715 (E1) 2170 x 760 x 715 (E2)
重量	139 kg (E1) 154 kg (E2)	139 kg (E1) 154 kg (E2)	196 kg (E1 F1) 215 kg (E2 F1) 453 kg (E1 F2) 471 kg (E2 F2)	255 kg (E1) 278 kg (E2)	266 kg (E1) 295 kg (E2)
最大功率要求	1400 VA	1400 VA	1400 VA (F1) 1500 (F2)	1400 VA	1200 VA
UL 认证
