ISO 2062 纱线断裂强力和伸长率
ISO 2062 用于测试纺织纱线和麻线，以确定其断裂强力和断裂伸长率 。纱线测试是原材料到成品面料之间的必要环节，有助于控制最终成品的质量。
待测试样两端被夹持在固定夹片中，以恒定的位移速率拉伸直至断裂。对于该特定测试，高数据采集速率至关重要，因为部分试样会在数秒内断裂。高数据采集速率可确保在短时间内采集数据。

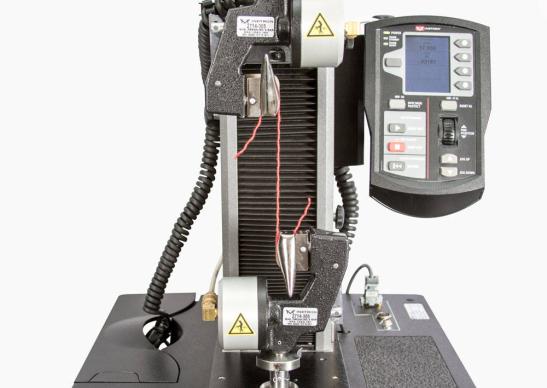

Instron 2714 系列气帘线夹具具有光滑表面和仿形夹持区域，可降低试样所受应力，从而减少夹面断裂和试样过早失效的可能性。这些夹具通过脚踏开关操作可实现免手持操作。 这些夹具提供不同样式的可互换夹持块，包括用于高支度 芳纶纤维专用夹持块。
按照这一标准进行测试的挑战在于：
- 试样夹持
Instron 解决方案：
- Instron 气帘线夹具提供仿形夹面，在保持高测试量的同时降低试样在夹持部分断裂的风险。
为全面理解测试设备、流程及结果要求，查阅 ISO 2062:2009 标准至关重要。
2714-005 Pneumatic Cord and Yarn Grips
Pneumatic cord and yarn grips provide a convenient method for clamping fiber, cord, yarns and fine wires to reduce the problem associated with testing these materials. Rated capacity 1 kN.
